Exponent::Vst::CVstWindow

Exponent::Vst::CVstWindow Class Reference

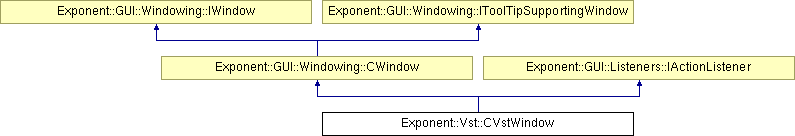

Inheritance diagram for Exponent::Vst::CVstWindow:

Exponent::GUI::Windowing::CWindow Exponent::GUI::Listeners::IActionListener Exponent::GUI::Windowing::IWindow Exponent::GUI::Windowing::IToolTipSupportingWindow List of all members.

Detailed Description

A VST specific window class.

Date:
22/04/2005
Author:
Paul Chana
Version:
1.0.0 Initial version

1.0.1 Added Keyoard hook through root

1.0.2 Converted to VST 2.4 compatiblity

Note:
All contents of this source code are copyright 2005 Exp Digital Uk.
This source file is covered by the licence conditions of the Infinity API. You should have recieved a copy
with the source code. If you didnt, please refer to http://www.expdigital.co.uk All content is the Intellectual property of Exp Digital Uk.
Certain sections of this code may come from other sources. They are credited where applicable.
If you have comments, suggestions or bug reports please visit http://support.expdigital.co.uk Please note that VST is copyright Steinberg Media GmBh. No challenge is made to any of their trademarks To use this file, you require a copy of the VST SDK, available from www.steinberg.net for free
Id
CVstWindow.hpp,v 1.6 2007/02/27 19:47:38 paul Exp

Definition at line 52 of file CVstWindow.hpp.

Public Member Functions

Protected Member Functions

Protected Attributes

Classes

Constructor & Destructor Documentation

Exponent::Vst::CVstWindow::CVstWindow ( AudioEffect *  theEffect,
const CRect &  windowArea,
CWindowAttributes *  attributes
)

Construction

Parameters:
theEffect The effect tied to this editor
windowArea Size of the editor
attributes Attributes of the window

virtual Exponent::Vst::CVstWindow::~CVstWindow (  )  [virtual]

Destruction

Member Function Documentation

void Exponent::Vst::CVstWindow::blockUpdates ( const bool  block  )  [inline]

Block updates

Parameters:
block If true all drawing updates are prevented from happening, if false, drawing is allowed as normal

Definition at line 101 of file CVstWindow.hpp.

References m_blockUpdates.

virtual void Exponent::Vst::CVstWindow::close (  )  [virtual]

Close the window

virtual void Exponent::Vst::CVstWindow::createVSTWindow ( void *  windowHandle  )  [protected, virtual]

Create the vst window

Parameters:
windowHandle Parent window handle

virtual void Exponent::Vst::CVstWindow::destroyVSTWindow (  )  [protected, virtual]

Destroy the vst window

virtual bool Exponent::Vst::CVstWindow::getRect ( ERect **  rect  )  [virtual]

Get the area of the window

Parameters:
rect The rectangle to fill
Return values:
bool 1 On scuess, 0 otherwise..

virtual void Exponent::Vst::CVstWindow::handleActionEvent ( const CActionEvent &  event  )  [virtual]

Handle action events

Parameters:
event The action event to handle

virtual bool Exponent::Vst::CVstWindow::handleKeyDown ( const CKeyboardEvent &  event  )  [virtual]

Handle key down events

Parameters:
event The event to handle
Return values:
bool TRue if handled, false otherwise

virtual bool Exponent::Vst::CVstWindow::handleKeyUp ( const CKeyboardEvent &  event  )  [virtual]

Handle key up events

Parameters:
event The event to handle
Return values:
bool TRue if handled, false otherwise

virtual void Exponent::Vst::CVstWindow::idle (  )  [virtual]

Silly VST Idle function

virtual bool Exponent::Vst::CVstWindow::open ( void *  windowHandle  )  [virtual]

Open the window -> You should override and then call startVSTWindow

Parameters:
windowHandle Parent window handle
Return values:
bool True if opened properly, false otherwise

virtual void Exponent::Vst::CVstWindow::parameterIsBeingSetFromEditor ( const bool  setFromEditor = true  )  [inline, virtual]

Parameter is being set from the editor

Parameters:
setFromEditor If true user has adjusted on screen control, if false the change is programmatic and the GUI should be redrawn

Definition at line 170 of file CVstWindow.hpp.

References m_setFromEditor.

virtual bool Exponent::Vst::CVstWindow::parameterSetFromEditor (  )  const [inline, virtual]

Parameter is set from the editor

Return values:
bool If true user has adjusted on screen control, if false the change is programmatic and the GUI should be redrawn

Definition at line 164 of file CVstWindow.hpp.

References m_setFromEditor.

virtual void Exponent::Vst::CVstWindow::redrawWindow (  )  [virtual]

Set the whole window dirty - generally use sparingly!!

Reimplemented from Exponent::GUI::Windowing::CWindow.

virtual void Exponent::Vst::CVstWindow::redrawWindow ( const CRect &  area  )  [virtual]

Set an area of the window dirty

Parameters:
area The area to redraw

Reimplemented from Exponent::GUI::Windowing::CWindow.

virtual void Exponent::Vst::CVstWindow::setParameter ( const long  index,
const double  value
) [virtual]

Set parameter

Parameters:
index The index of the parameter to set
value The value of the parameter to set

virtual void Exponent::Vst::CVstWindow::startVSTWindow (  )  [virtual]

Start (initialise) the VSTWindow

See also:
open

virtual void Exponent::Vst::CVstWindow::update (  )  [virtual]

Update the window

Member Data Documentation

bool Exponent::Vst::CVstWindow::m_blockUpdates [protected]

Should we allow updates?

Definition at line 329 of file CVstWindow.hpp.

Referenced by blockUpdates().

ERect Exponent::Vst::CVstWindow::m_myRect [protected]

Stupid VST rect that is required

Definition at line 330 of file CVstWindow.hpp.

bool Exponent::Vst::CVstWindow::m_setFromEditor [protected]

Is the change from the editor?

Definition at line 328 of file CVstWindow.hpp.

Referenced by parameterIsBeingSetFromEditor(), and parameterSetFromEditor().

CParentWindow* Exponent::Vst::CVstWindow::m_theVSTParentWindow [protected]

The parent window handle

Definition at line 327 of file CVstWindow.hpp.
